Besi WF / Besi H Beam / Besi INP / besi Siku / besi CNP / besi UNP
PT. ANEKA PRIMA STEEL menyediakan berbagai produk lain diantaranya :
Besi Wide Flange / Besi WF, Besi H Beam / Besi H, Besi INP / Besi I, besi Siku (angle bars ) ,
Besi Kanal C / besi CNP, Besi Kanal U / besi UNP

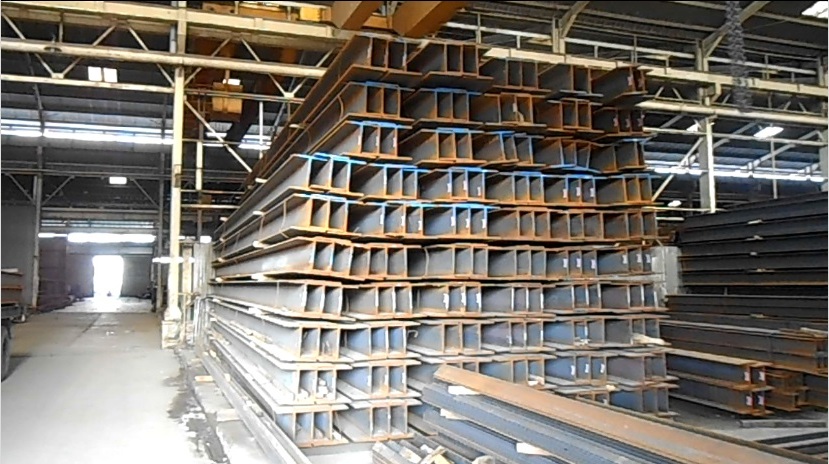

| 1. WF |
| Biasanya digunakan untuk tiang pancang, Balok, Kolom, DLL. |
| SIZE |
WEIGHT |
|
| A A S |
|
| 100 x 50 x 5 x 7 mm – 12 M |
112 Kg |
| 125 x 60 x 6 x 8 mm – 12 M |
158,4 Kg |
| 148 x 100 x 6 x 9 mm – 12 M |
253,2 Kg |
| 150 x 75 x 5 x 7 mm – 12 M |
168 Kg |
| 175 x 90 x 5 x 8 mm – 12 M |
217,2 Kg |
| 194 x 150 x 6 x 9 mm – 12 M |
367 Kg |
| 198 x 99 x 4,5 x 7 mm – 12 M |
218,4 Kg |
| 200 x 100 x 5,5 x 8 mm – 12 M |
256 Kg |
| 244 x 175 x 7 x 11 mm – 12 M |
529 Kg |
| 248 x 124 x 5 x 8 mm – 12 M |
308,4 Kg |
| 250 x 125 x 6 x 9 mm – 12 M |
355,2 Kg |
| 294 x 200 x 8 x 12 mm – 12 M |
681 Kg |
| 298 x 149 x 6 x 8 mm – 12 M |
384 Kg |
| 200 x 150 x 6,5 x 9 mm – 12 M |
440,4 Kg |
| 346 x 174 x 6 x 9 mm – 12 M |
497 Kg |
| 350 x 175 x 7 x 11 mm – 12 M |
595,2 Kg |
| 396 x 199 x 7 x 11 mm – 12 M |
679,5 Kg |
| 400 x 200 x 8 x 13 mm – 12 M |
792 Kg |
| 446 x 199 x 8 x 12 mm – 12 M |
794,40 Kg |
| 450 x 200 x 9 x 14 mm – 12 M |
912 Kg |
| 500 x 200 x 10 x 16 mm – 12 M |
1.075 Kg |
| 588 x 300 x 12 x 20 mm – 12 M |
1.812 Kg |
| 600 x 200 x 11 x 17 mm – 12 M |
1.272 Kg |
| 700 x 300 x 13 x 24 mm – 12 M |
2.220 Kg |
| 800 x 300 x 14 x 26 mm – 12 M |
2.520 Kg |
| SIZE |
WEIGHT |
 |
| A B t1 t2 |
| 100 x 100 x 6 x 8 mm – 12 M |
206 Kg |
| 125 x 125 x 5 x 7 mm – 12 M |
222 Kg |
| 125 x 125 x 6,5 x 9 mm – 12 M |
286 Kg |
| 150 x 150 x 7 x 10 mm – 12 M |
378 Kg |
| 175 x 175 x 7 x 11 mm – 12 M |
482 Kg |
| 200 x 200 x 8 x 12 mm – 12 M |
599 Kg |
| 250 x 250 x 9 x 14 mm – 12 M |
869 Kg |
| 300 x 300 x 10 x 15 mm – 12 M |
1,128 Kg |
| 350 x 350 x 12 x 19 mm – 12 M |
1.644 Kg |
| 400 x 400 x 13 x 21 mm – 12 M |
2.064 Kg |
| UNP |
| Penggunaan UNP Biasanya hampir sama dengan WF, kecuali untuk kolom, jarang digunakan karena relative mudah mengalami tekuk. |
| SIZE |
WEIGHT |
|
| H B T |
| UNP 5 (50x 38x 5 mm) – 6M |
30 Kg |
| UNP 6,5 (65x 42x 5 mm) – 6M |
41 Kg |
| UNP 7,5 (75x 40x 5 mm) – 6M |
45,3 Kg |
| UNP 8 (80x 45x 5 mm) – 6M |
47,76 Kg |
| UNP 10 (100x 50x 5 mm) – 6M |
56,2 Kg |
| UNP 10 (100x 50x 6 mm) – 6M |
67,5 Kg |
| UNP 12 (120x 55x 7 mm) – 6M |
80,40 Kg |
| UNP 12,5 (125x 65x 6 mm) – 6M |
80,40 Kg |
| UNP 15 (150x 75x 6,5 mm) – 6M |
112 Kg |
| UNP 18 (180x 75x 7 mm) – 6M |
128 Kg |
| UNP 20 (200x 80x 7,5 mm) – 6M |
148 Kg |
| UNP 25 (250x 90x 9 mm) – 6M |
208 Kg |
| UNP 30 (300x 90x 9 mm) – 6M |
229 Kg |
| UNP 300 (300x 100x 10 mm) – 6M |
526 Kg |
| CNP |
| Penggunaan CNP biasanya digunakan untuk balok dudukan penutup atas, girts, elemen yang memegang penutup ruang. |
| SIZE |
WEIGHT |
|
| A B C T |
| 60 x 30 x 10 x 1,6 mm – 6 M |
9,76 Kg |
| 75 x 35 x 15 x 1,6 mm – 6 M |
12,4 Kg |
| 75 x 45 x 15 x 1,6 mm – 6 M |
13,92 Kg |
| 75 x 45 x 15 x 2,3 mm – 6 M |
19,5 Kg |
| 100 x 50 x 20 x 1,6 mm – 6 M |
17,5 Kg |
| 100 x 50 x 20 x 2,3 mm – 6 M |
24,4 Kg |
| 100 x 50 x 20 x 3,2 mm – 6 M |
33,– Kg |
| 125 x 50 x 20 x 2,3 mm – 6 M |
27,1 Kg |
| 125 x 50 x 20 x 3,2 mm – 6 M |
36,8 Kg |
| 150 x 50 x 20 x 2,3 mm – 6 M |
29,8 Kg |
| 150 x 50 x 20 x 3,2 mm – 6 M |
40,6 Kg |
| 150 x 65 x 20 x 2,3 mm – 6 M |
33,– Kg |
| 150 x 65 x 20 x 3,2 mm – 6 M |
45,1 Kg |
| 200 x 75 x 20 x 3,2 mm – 6 M |
56,62 Kg |
 |
| Ukuran Siku |
Berat Siku |
| 20 x 20 x 3 mm – 6 M |
5,31 Kg |
| 25 x 25 x 3 mm – 6 M |
6,72 Kg |
| 30 x 30 x 3 mm – 6 M |
8,16 Kg |
| 40 x 40 x 3 mm – 6 M |
11 Kg |
| 40 x 40 x 4 mm – 6 M |
14,5 Kg |
| 40 x 40 x 5 mm – 6 M |
18 Kg |
| 45 x 45 x 4 mm – 6 M |
16,44 Kg |
| 45 x 45 x 5 mm – 6 M |
20,5 Kg |
| 50 x 50 x 4 mm – 6 M |
18,4 Kg |
| 50 x 50 x 5 mm – 6 M |
22,68 Kg |
| 50 x 50 x 6 mm – 6 M |
27,58 Kg |
| 60 x 60 x 5 mm – 6 M |
27,42 Kg |
| 60 x 60 x 6 mm – 6 M |
32,52 Kg |
| 65 x 65 x 6 mm – 6 M |
35,46 Kg |
| 70 x 70 x 6 mm – 6 M |
38,28 Kg |
| 70 x 70 x 7 mm – 6 M |
44,28 Kg |
| 75 x 75 x 6 mm – 6 M |
41,22 Kg |
| 75 x 75 x 7 mm – 6 M |
47,64 Kg |
| 75 x 75 x 8 mm – 6 M |
54,18 Kg |
| 75 x 75 x 9 mm – 6 M |
60 Kg |
| 80 x 80 x 6 mm – 6 M |
43,02 Kg |
| 80 x 80 x 8 mm – 6 M |
57,96 Kg |
| 90 x 90 x 8 mm – 6 M |
65,4 Kg |
| 90 x 90 x 9 mm – 6 M |
73,2 Kg |
| 90 x 90 x 10 mm – 6 M |
79,8 Kg |
| 100 x 100 x 8 mm – 6 M |
73,2 Kg |
| 100 x 100 x 10 mm – 6 M |
90,6 Kg |
| 100 x 100 x 11 mm – 6 M |
119,4 Kg |
| 120 x 120 x 12 mm – 6 M |
130 Kg |
| 125 x 125 x 12 mm – 6 M |
140 Kg |
| 130 x 130 x 9 mm – 6 M |
129 Kg |
| 130 x 130 x 12 mm – 6 M |
140 Kg |
| 150 x 150 x 12 mm – 6 M |
164 Kg |
| 150 x 150 x 15 mm – 6 M |
202 Kg |
| 200 x 200 x 15 mm – 6 M |
272 Kg |
| 200 x 200 x 16 mm – 6 M |
301 Kg |
| 200 x 200 x 20 mm – 6 M |
358 Kg |
| 200 x 200 x 25 mm – 6 M |
442 Kg |
| 250 x 250 x 25 mm – 6 M |
562 Kg |
| CARA PERHITUNGAN BERAT / CALCULATION METHOD : |
| Lebar x Tebal x 6 x 0,01512 = Berat (Kg) / WEIGHT (Kg) |
